Application

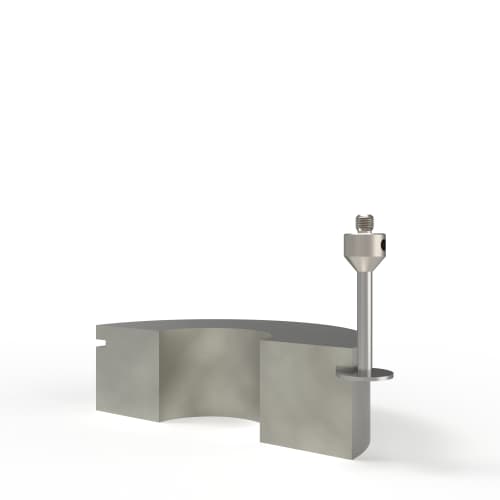

Disc styli to measure rotationally symmetrical workpieces with undercuts or recesses and cylinders. M5 thread for VAST active scanning sensors.
- Discs for grooves, undercuts in boreholes and similar
- Tungsten carbide disc for special size and form
- Tungsten carbide shaft with high rigidity
- Straight shaft with longer measuring length
- Proven ZEISS quality through high-end manufacturing
Details
- Application
- Tactile
- Product Type
- Stylus
- Stylus Type
- Disk Stylus
- Connection Type
- M5
- Stylus Tip Material
- Tung. Carb.
- Stylus Tip Geometry
- Spherical Disk

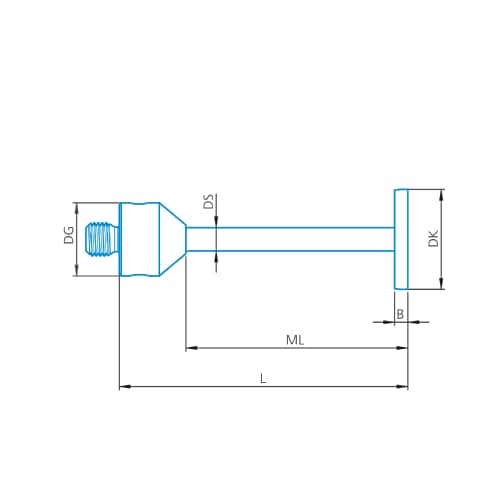

- Ø Sphere (DK)
- 6,0 mm
- Length (L)
- 50,0 mm
- Measurement Length (ML)
- 40,0 mm
- Shaft Material
- Tung. Carb.
- Ø Shaft (DS)
- 2,0 mm
- Ø Body (DG)
- 11,0 mm
- Width (B)
- 1,0 mm
- Weight
- 7,7 g
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may occur. Therefore, regularly check your styli under a microscope and remember to clean them or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available for cleaning. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
