M2, Stylus straight, ruby sphere, tungsten carbide shaft
Stylus straight M2, DK1.5 L36
626102-0144-036
Application
Standard Styli suitable for all common measuring tasks. M2 threads are common for Renishaw touch sensors.
- Ruby is the most versatile sphere material
- Ruby spheres available from 0.2 up to 12 mm
- Tungsten carbide shaft with high rigidity
- Straight shaft with longer measuring length
- Proven ZEISS quality through high-end manufacturing
Details
- Application
- Tactile
- Product Type
- Stylus
- Stylus Type
- Straight
- Connection Type
- M2
- Stylus Tip Material
- Ruby
- Stylus Tip Geometry
- Sphere

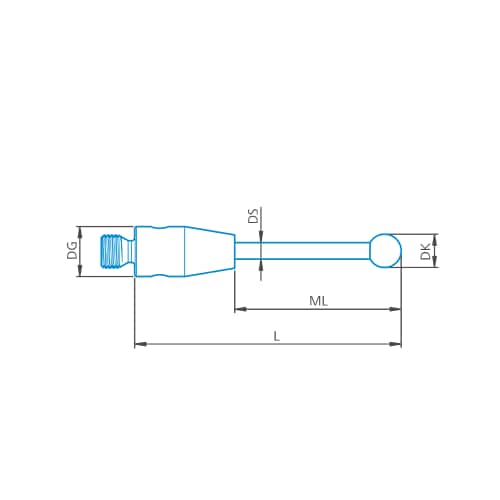

- Ø Sphere (DK)
- 1,5 mm
- Length (L)
- 36,0 mm
- Measurement Length (ML)
- 30,0 mm
- Shaft Material
- Tung. Carb.
- Ø Shaft (DS)
- 1,0 mm
- Ø Body (DG)
- 3,0 mm
- Weight
- 0,7 g
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
